LED (LIGHT-EMITTING DIODE)

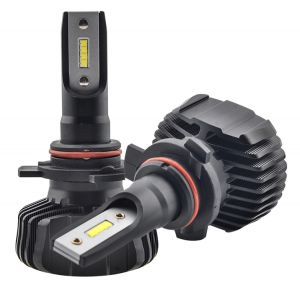

LED CONVERSION SET - STANDARD
Operation Voltage: DC 9 – 32V
Current Consumption: 1.6A ± 0.2A per Unit
Power Consumption: 20W per Unit
Color Temperature: 6500 Kelvin
Luminous Flux: 4500 Lumen per Unit
Certification: CE, RoHS
Water & Dust Resistance: IP65
| ITEM CODE | TYPE | BEAM | VOLTAGE | KELVIN | LUMEN |
| L-LESH-04 | H4 | DUAL – HIGH AND LOW | 9-32 | 6500K | 4500 |
| L-LESH-07 | H7 | SINGLE | 9-32 | 6500K | 4500 |
| L-LESH-01 | H1 | SINGLE | 9-32 | 6500K | 4500 |
| L-LESH-B3 | HB3,9005 | SINGLE | 9-32 | 6500K | 4500 |
| L-LESH-B4 | HB4,9006 | SINGLE | 9-32 | 6500K | 4500 |
| L-LESH-11 | H11 | SINGLE | 9-32 | 6500K | 4500 |
LED CONVERSION SET - CANbus
Operation Voltage: DC 8 – 32V
Current Consumption: 2.7A per Unit
Power Consumption: 35W per Unit
Color Temperature: 6000 Kelvin
Luminous Flux: 4800 Lumen per Unit
Certification: CE, RoHS
Water & Dust Resistance: IP68
CANbus Fuctionality: CANbus Error-Free LED Driver Included
| ITEM CODE | TYPE | BEAM | VOLTAGE | KELVIN | LUMEN |
| L-LECH-07 | H7 | SINGLE | 8-32 | 6000K | 4800 |
| ITEM CODE | DESCRIPTION |
| L-LECH-LR | LOAD RESISTORS SET FOR CANbus SYSTEM |
H7-BASE(PX26d) COMPATIBLE ADAPTORS AVAILABLE UPON REQUEST
LED MINIATURE
| ITEM CODE | TYPE | DESCRIPTION | VOLTAGE | COLOR | CANbus |
| L-LEWE-10 | W5W | WEDGE T10 PARKER | 12 | WHITE | YES |
| L-LEWE-15 | W16W | WEDGE T15 | 12 | WHITE | |
| L-LEWE-20S | W21W | WEDGE T20 SINGLE | 12 | WHITE | YES |
| L-LEWE-20SA | WY21W | WEDGE T20 SINGLE AMBER | 12 | AMBER | YES |
| L-LEWE-20D | W21/5W | WEDGE T20 DOUBLE | 12 | RED | YES |
| L-LEFE-31 | FESTOON 31mm | 12 | WHITE | YES | |
| L-LEFE-36 | C5W | FESTOON 36mm | 12 | WHITE | YES |
| L-LEFE-39 | FESTOON 39mm | 12 | WHITE | YES | |
| L-LEBY-25S | P21W | S25 SINGLE | 12 | WHITE | |
| L-LEBY-25SA | PY21W | S25 SINGLE AMBER | 12 | AMBER | |
| L-LEBY-25D | P21/5W | S25 DOUBLE | 12 | RED |
